VSOL - 2 PORT - OLT , FTTX , 2X 1G RJ45 , 2xSFP+ , 2x C+++

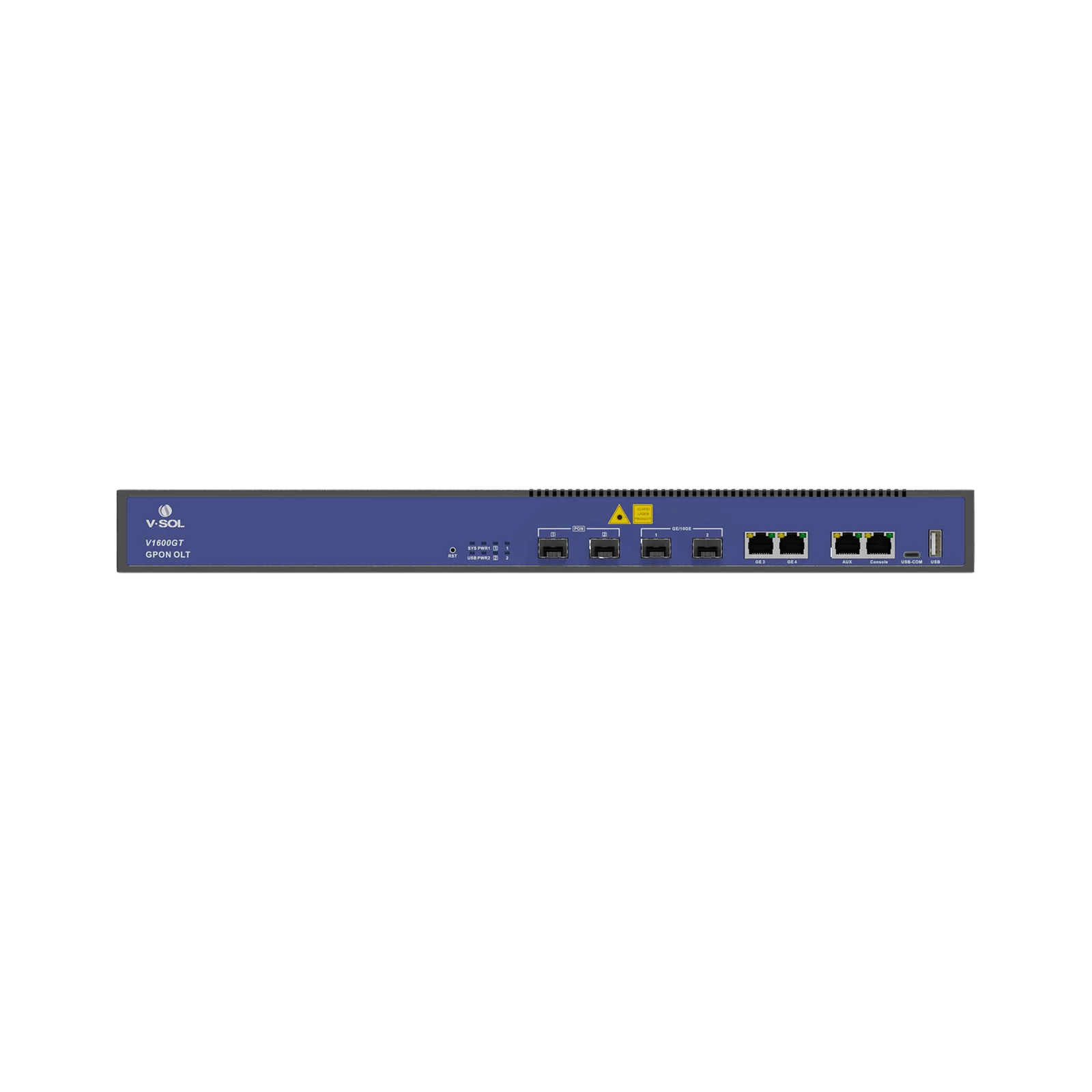

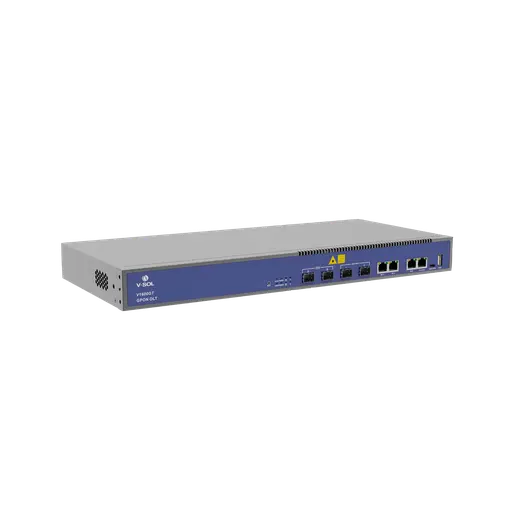

GPON OLT V1600GT

V1600GT, seyrek nüfuslu/uzak/maliyet hassasiyeti yüksek bölgeler, akıllı sanayi parkları, ticari binalar ve FTTM gibi senaryolara uygun, esnek ve hızlı FTTx erişimi sağlayan, iki GPON portuna sahip kutu tipi bir GPON OLT'dir.

Teknik Özellikler;

Chassis;

Rack 1U 19Inch Standard Box
Uplink Port;

QTY: 4

RJ45(GE): 2

SFP(GE)/SFP+(10GE): 2
GPON Port;

QTY: 2

Physical Interface: SFP Slots

Supported PON module level: Class C++/Class C+++/Class C++++

Max splitting ratio: 1:128

Management Ports: 1*10/100/1000BASE-T out-band port, 1*CONSOLEport, 1*USB-COM, 1*USB2.0

Backplane Bandwidth (Gbps): 208

Port Forwarding Rate(Mpps): 40.176
PON Port Specification (Class C+++);

Transmission Distance: 20KM

PON port speed: Upstream 1.244Gbps, Downstream 2.488Gbps

Wavelength: TX 1490nm, RX 1310nm

Connector: SC/UPC

Fiber Type: 9/125μm SMF

TX Power: +4.5~+10dBm

Rx Sensitivity: ≤ -30dBm

Saturation Optical Power: -12dBm

Power Supply;

AC: Working Voltage Range: 100~240V, Rated Voltage: 110V/220V
DC: Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V
Management Mode: WEB , Telnet , CLI
