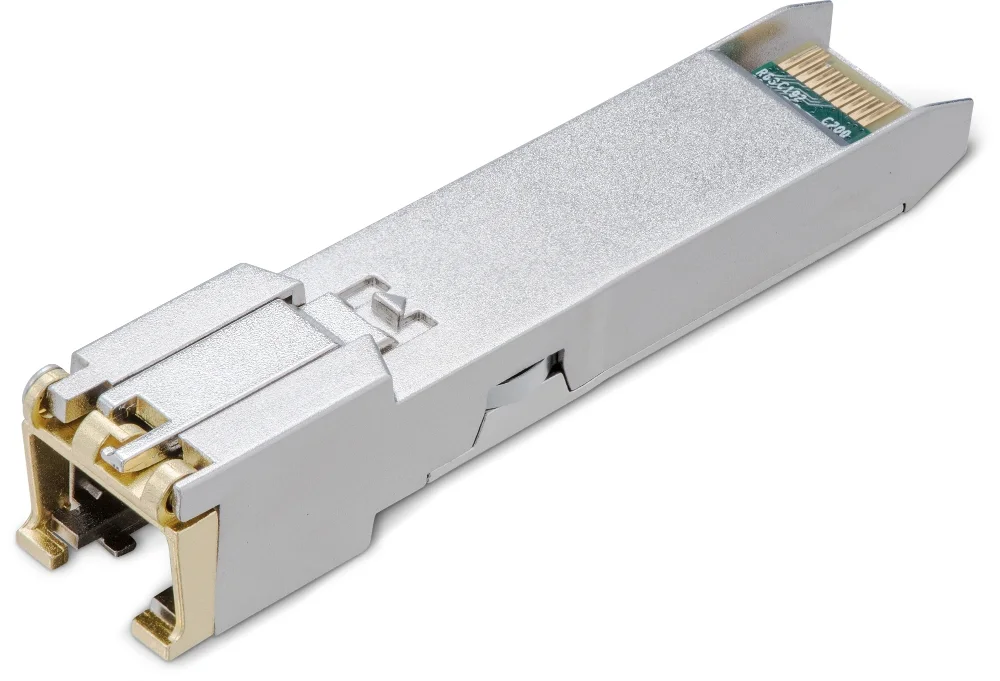

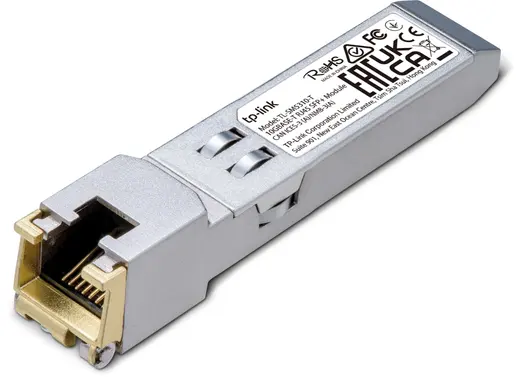

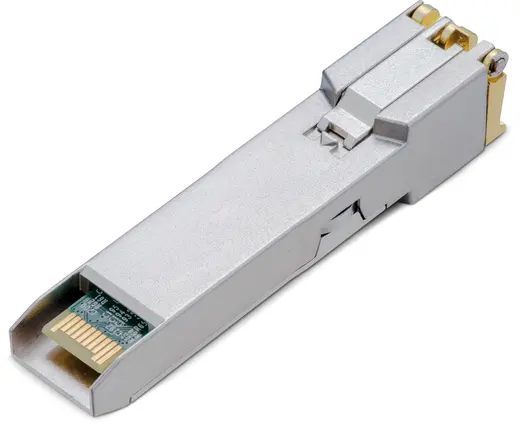

TP-LINBK TL-SM5310-T 10G BASE-T RJ45 SFP+ Bakır Alıcı-Verici (Transceiver) Modülü

TL-SM5310-T

10G BASE-T RJ45 SFP+ Module

• Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
• Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
• Support DDM (Temperature and Voltage)
• Hot-Pluggable SFP+ Footprint Features
• Support TX Disable function
• Commercial Product Operating Temperature Range: 0-70°C
• Fully Metallic Enclosure for Low EMI

PAKET İÇERİĞİ
Package Contents • 10G BASE-T RJ45 SFP+ Module TL-SM5310-T
• Installation Guide

DONANIM ÖZELLİKLERİ
Hot Swappable Yes

MEDYA DÖNÜŞTÜRÜCÜ & MODÜL
Boyutlar (W*D*H) 2.7*0.5*0.5 in (67.4*13.75*13.8 mm)

Transceiver
Standartlar ve Protokoller IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
Güç Kaynağı 3.3V
Maks. Kablo Uzunluğu 100BASE-TX: UTP cat .5 or above (max. 100m)
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
10GBASE-T: UTP cat.6a or above (max. 30m)
Veri Hızı 10.3 Gbps
Port Tipi 1× 10G RJ45 Port
Güvenlik ve Emisyon FCC, CE, RoHS
Ortam Operating Temperature: 0–70 ? (32–158 ?)
Storage Temperature: -40–85 ? (-40–185 ?)

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Teknik Özellikler

• Commercial Product Operating Temperature Range: 0-70°C
