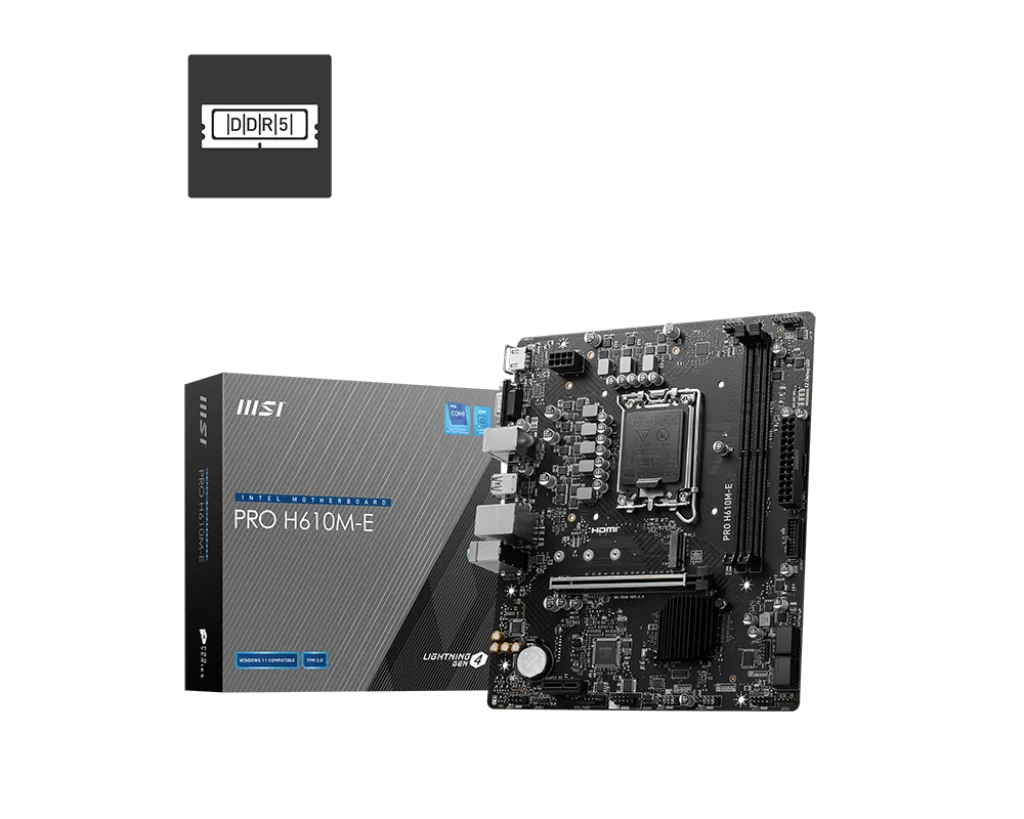

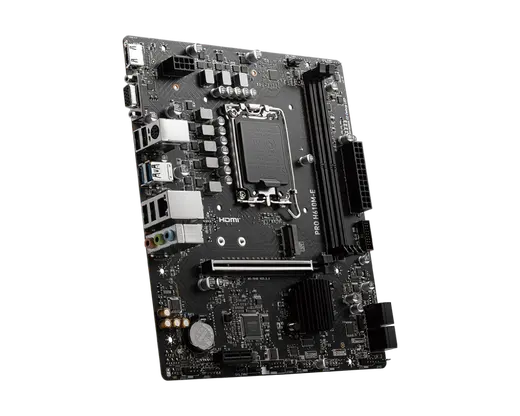

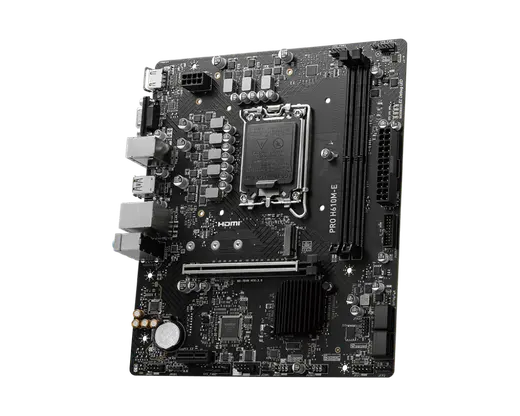

MSI PRO H610M-E DDR5 1700P DDR5 SES GLAN HDMI/VGA SATA3 USB3.2 mATX

Teknik Özellikler

• İŞLEMCİ: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
• YONGA SETİ: INTEL H610
• BELLEK: 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
• DAHİLİ GRAFİK: 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA
• GENİŞLEME YUVALARI: 1x PCI-E x16 slot 1x PCI-E x1 slot PCI E1 Gen PCIe 4.0 supports up to (From CPU) PCI E2 Gen PCIe 3.0 supports up to (From Chipset)
• SES DESTEĞİ: Realtek® ALC897 Codec 7.1-Channel High Definition Audio
• LAN: Realtek® RTL8111H Gigabit LAN
• USB PORTLARI: 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
• DEPOLAMA ARAYÜZÜ: 1x M.2 M.2 1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2 1 slot.

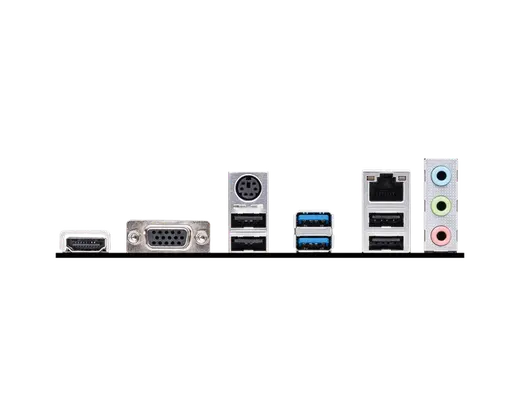

• ARKA GİRİŞ/ÇIKIŞ PORTLARI: HDMI™ VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0
• DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI: 1x Power Connector(ATX PWR) 1x Power Connector(CPU PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
• İŞLETİM SİSTEMİ DESTEĞİ: Support for Windows® 11 64-bit, Windows® 10 64-bit
• FORM FAKTÖRÜ: mATX 200mmx236.16mm
