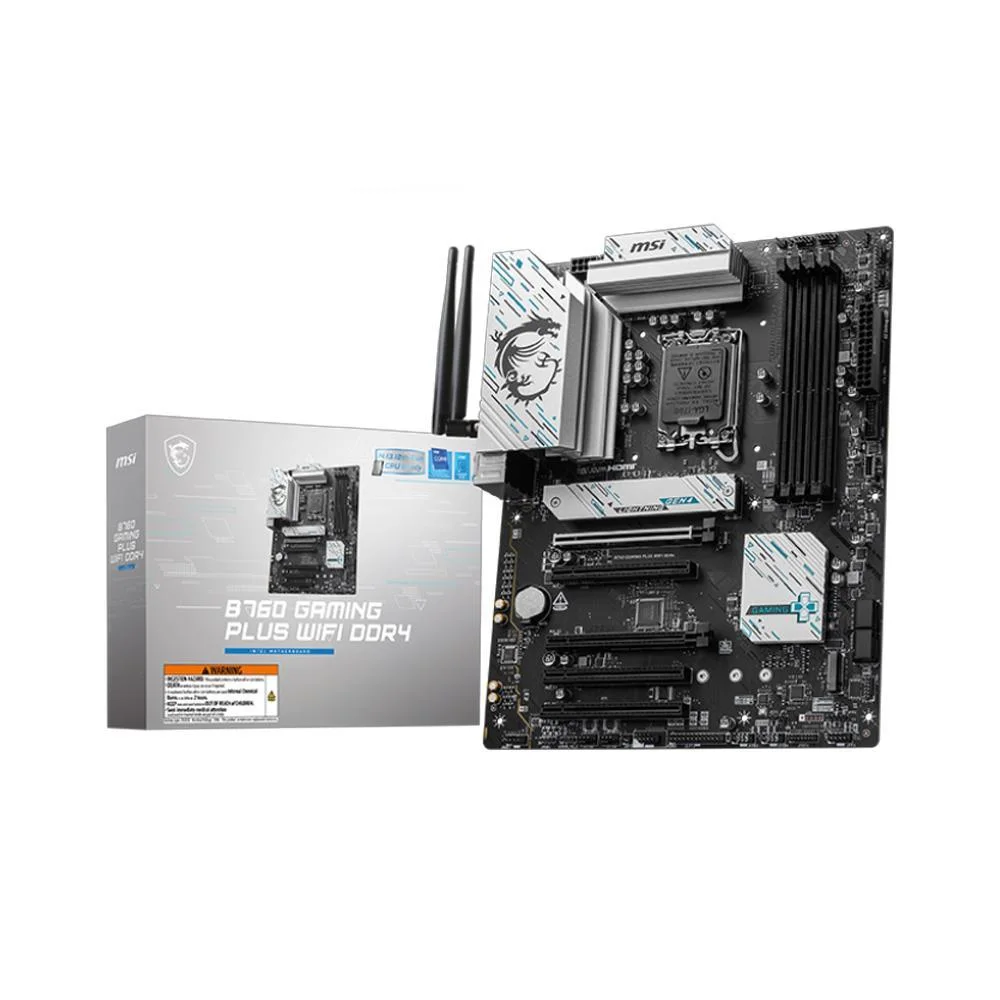

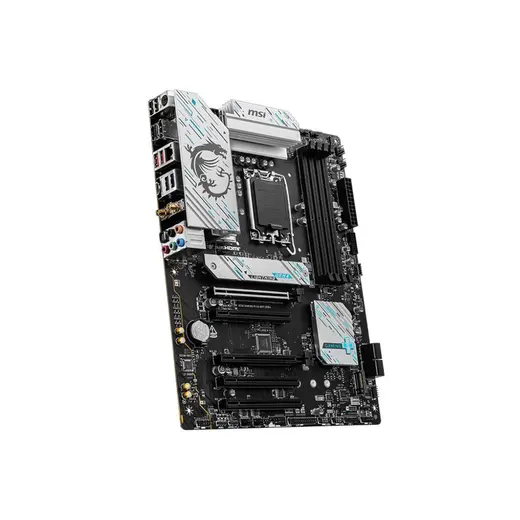

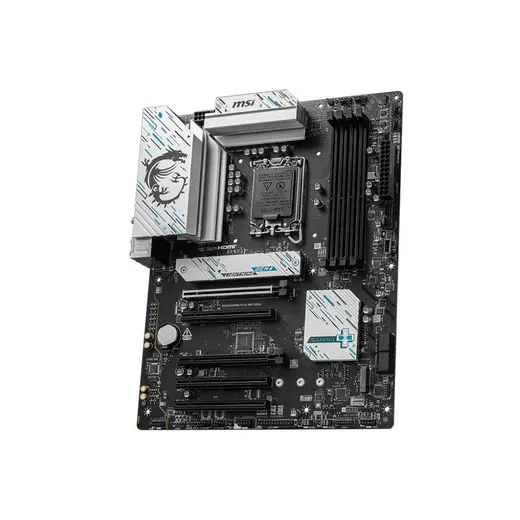

MSI B760 GAMING PLUS WIFI DDR4 1700P DDR4 SES GLAN DP/HDMI SATA3 USB3.2 ATX

PCI-E ,M.2 USB3.2 HDMI,DP 1X 2.5G LAN WI-FI 6E ATX

Teknik Özellikler

• İŞLEMCİ: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• YONGA SETİ: B760
• BELLEK: 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz
• DAHİLİ GRAFİK: 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
• GENİŞLEME YUVALARI: 5x PCI-E x16 slot PCI E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
• SES DESTEĞİ: Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
• LAN: Realtek® RTL8125BG 2.5G LAN
• USB PORTLARI: 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
• DEPOLAMA ARAYÜZÜ: 2x M.2 M.2 1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2 2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2 2 slot.

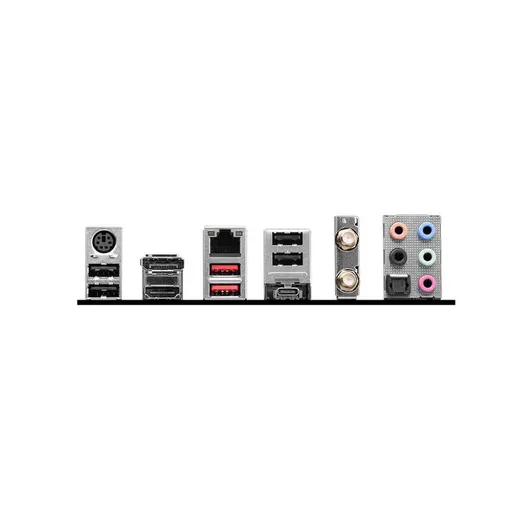

• ARKA GİRİŞ/ÇIKIŞ PORTLARI: Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT
• DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI: 1x Power Connector(ATX PWR) 2x Power Connector(CPU PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
• İŞLETİM SİSTEMİ DESTEĞİ: Support for Windows® 11 64-bit, Windows® 10 64-bit
• FORM FAKTÖRÜ: ATX 243.84mmx304.8mm
