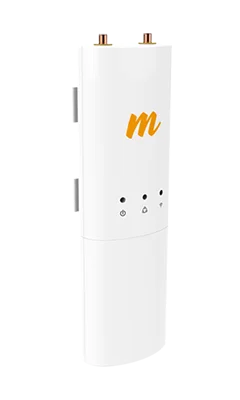

MIMOSA 5GHz C5c 2x2 MU-MIMO PTP Radio / Client

Mimosa C5c PTP yada PTMP (Client) Kullanımına uygun 5 Ghz , 2x2 Mimo 20/40/80 Ghz Bandwitdh kapasitesine sahip profesyonel 5 Ghz RadyoLink Cihazı

4900-6400Mhz aralığında çalışma kapasitesine sahip olan bu ürün ( * Kullanılan ülkeye göre yasal frekansların tercih edilmesi gerekmektedir. yapılandırma esnasında otomatik frekans belirlenir ) yüksek kapasiteli veri aktarım projelerinizde ihtiyaçlarınızı karşılayakcaıt.

Mimosa C5c ürünü antensiz model olup 5 Ghz anten haricen alınması gerekmektedir. 5Ghz anten gruplarında Mikrotik MTAD-5G-30-PA yada Ubnt AF-5G23-S45 , AF-5G30-S45 , AF-5G34-S45 ürünleri tercih edilebilir .

KUTU İÇERİSİNDE POE ADAPTÖR MEVCUT DEĞİLDİR.HARİCİ OLARAK SATIN ALIMI YAPILMASI GEREKMEKTEDİR.

Adaptör olarak, POE-48-24W-G modelimizi tercih edebilirsiniz.

Performance

Max Throughput
500+ Mbps IP (866 Mbps PHY)

Wireless Protocols
WiFi Interop

Mimosa SRS

Modes
PTMP Client

PTP Backhaul

Radio

MIMO & Modulation
2x2:2 MIMO OFDM up to 256 QAM

Bandwidth*
20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS;

Tunable to standard WiFi channels for WiFi Interop

Frequency Range
PTMP: 4900-6200 MHz

PTP: 4900-6400 MHz

Restricted by country of operation

*new* US/FCC 5600-5650 MHz support

FCC DFS (U-NII-2a, U-NII-2c) availability pending certification

Max Output Power
27 dBm

Sensitivity ( MCS 0 )
-87 dBm @ 80 MHz

-90 dBm @ 40 MHz

-93 dBm @ 20 MHz

Power

Max Power Consumption
9.2 W

System Power Method
Passive PoE (24-56 VDC) ( Kutu içerisinde mevcut değildir .)

PoE Power Supply
Passive POE compliant, 48-56 V

Physical

Dimensions
Depth 44 mm (1.73")

Width 65 mm (2.56")

Height 188.4 mm (7.42")

Weight
295 grams (10.4 oz)

Mounting
Single pole strap

Connector Type
RP-SMA (x2)

Environmental

Outdoor Ingress Protection Rating
IP55

Operating Temperature
-40°C to +55°C (-40°F to 131°F)

Operating Humidity
5 to 100% condensing

Operating Altitude
4420 m (14501') maximum

Shock & Vibration
ETS 300-019-2-4 class 4M5

Features

Gigabit Ethernet
10/100/1000-BASE-T

Multi-User MIMO**
CPE is MU-MIMO-capable

Management Services
Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI

Smart Spectrum Management
Active scan monitors/logs ongoing RF interference across channels (no service impact)

Dynamic auto-optimization of channel and bandwidth use

Security
WPA2 + Mimosa 802.1x Client**

QoS
Supports 4 pre-configured QoS levels

Regulatory + Compliance

Approvals
FCC Part 15.407 and Part 90Y, IC RSS210,

CE, ETSI 301 893/302 502

RoHS Compliance
Yes

Safety
UL/EC/EN/ 60950-1 + CSA-22.2

* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)

** Enabled in future software release

‡ U.S. Pat. No. US 9,001,689 and patents pendin
