GIGABYTE H610M-K DDR4 1700P DDR4 SES GLAN HDMI SATA3 USB3.2 mATX

GbE LAN, kalabalık LAN ortamlarında daha iyi yanıt verebilmek için ağ gecikmesini iyileştirmeye ve düşük ping sürelerini korumaya yardımcı olan bir ağ bant genişliği yönetimi uygulamasına sahiptir.

H610 anakartlar, CPU-nun aşırı yüklenmesi sırasında kararlı bir güç kaynağı sunmak için katı kaplamalı ATX 12V 8pin güç konektörlerine sahiptir.

Teknik Özellikler

• İŞLEMCİ: LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU
• YONGA SETİ: Intel® H610 Express Chipset
• BELLEK: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
• DAHİLİ GRAFİK: Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
• GENİŞLEME YUVALARI: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• SES DESTEĞİ: Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
• LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• USB PORTLARI: Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• DEPOLAMA ARAYÜZÜ: Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors

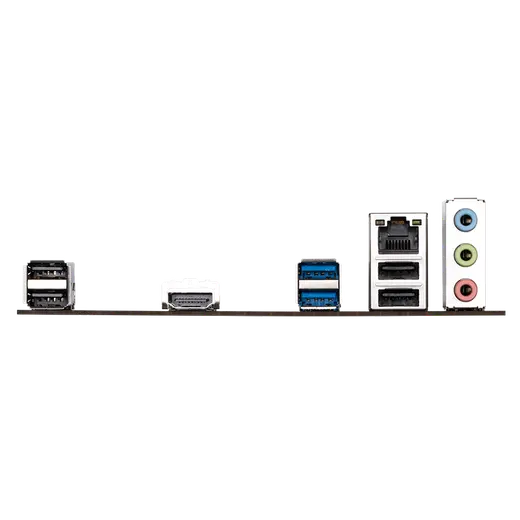

• ARKA GİRİŞ/ÇIKIŞ PORTLARI: 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
• DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper
• İŞLETİM SİSTEMİ DESTEĞİ: Support for Windows 11 64-bit Support for Windows 10 64-bit
• FORM FAKTÖRÜ: Micro ATX Form Factor; 22.6cm x 18.5cm
• BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
