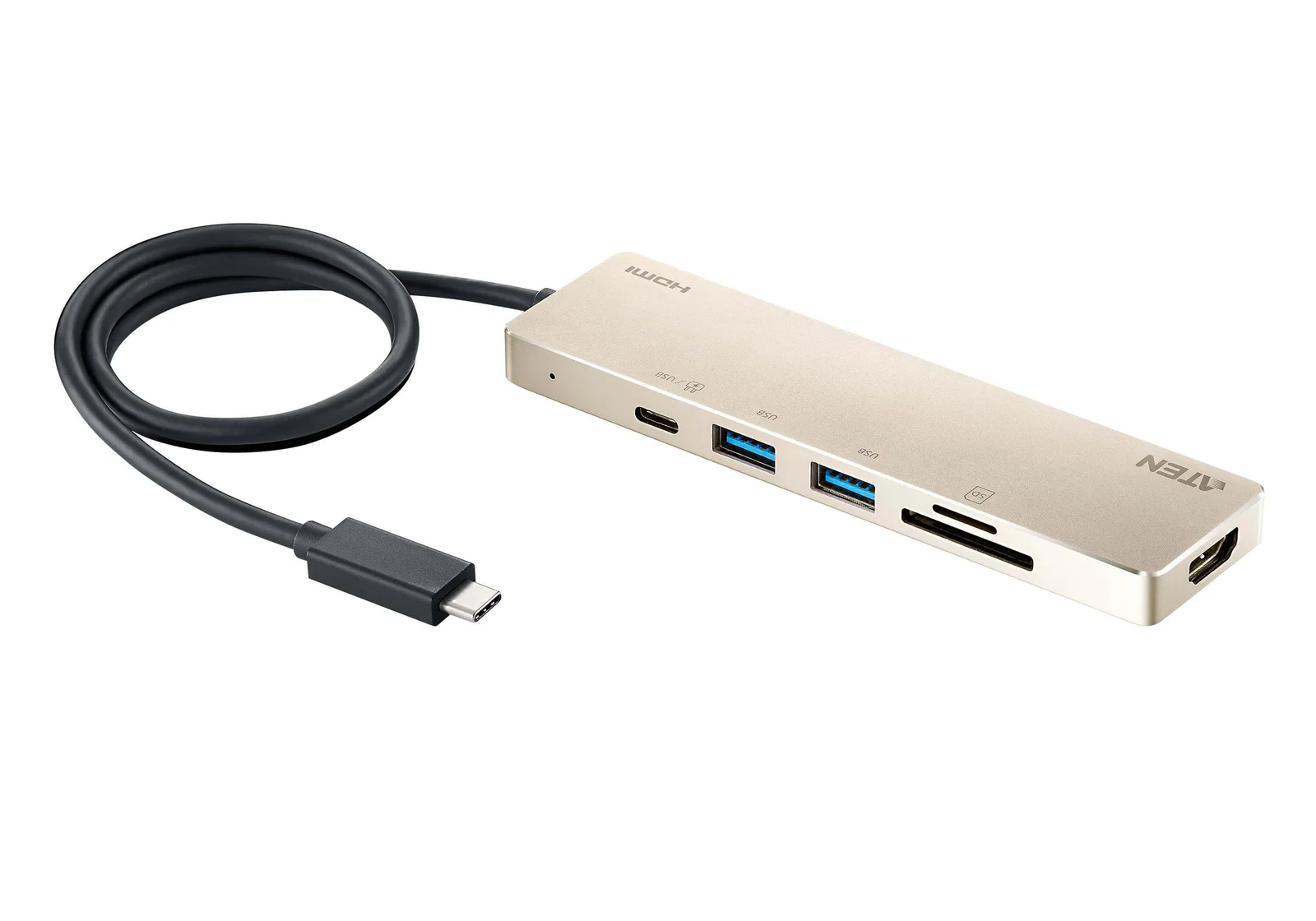

ATEN ATEN-UH3239 USB-C Multiport Mini Dock with Power Pass-Through

ATEN-UH3239 Uzun Tanım

The UH3239 USB-C Multiport Mini Dock with Power Pass-Through is a portable, versatile and flexible 6-in-1 adapter for USB-C PCs or laptops. The durable aluminum enclosure ships with dual USB 3.2 Type-A ports, a USB-C PD port, an HDMI port along with an SD card and a MicroSD card slots. It covers users' peripheral connectivity demands while allowing power delivery to the connected USB-C device. It supports resolutions up to 4K HDMI (3840 x 2160 @ 30Hz) to ensure that every detail of the video is displayed in the crisp and sharp UHD resolution on the 4K graphics-supported laptop. Besides, its 2 USB 3.2 Gen 1 Type-A ports guarantee effective communication with peripherals at a decent 5 Gbps transmission speed. Thanks to the USB-C PD port, the UH3239 can provide power or charge the external devices, and hence, there will be no more tangled data cables on the desk.

The UH3239 is a plug-and-play device compatible with all major operating systems (Windows®, macOS X and iPadOS). It is a compact, yet competent, data and power transmission solution for on-the-go professionals when it comes to building a mobile workstation ecosystem.

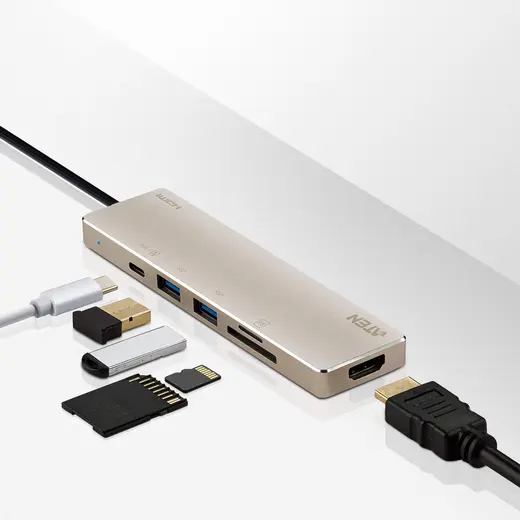

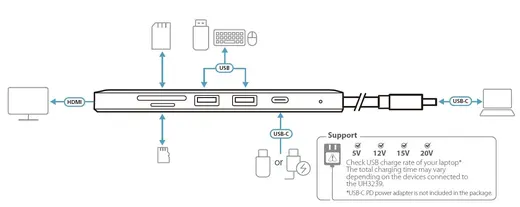

6-in-1 multi-function dock that includes 1x HDMI, 1x SD / Micro SD card reader, 1x USB-C PD port and 2x USB 3.2 Gen 1 Type-A ports

Supports USB PD 2.0 for laptop charging up to 60W via USB-C PD power adapter – power profiles include 5V, 12V, 15V, 20V

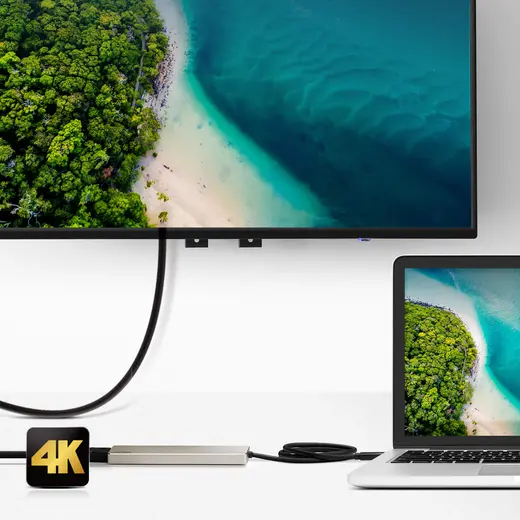

Supports resolutions up to 4K (3840 x 2160 @ 30Hz) for superior video distribution

Plug and Play – no drivers needed

Works with all major operating systems: Windows®, macOS X and iPadOS

Compatible with Thunderbolt™ 3 (USB-C)

Computer Connections

1

Cable Length

55cm

Connectors

Computer

USB 3.2 Gen1 Type-C Male Cable

Device

2 x USB 3.2 Gen 1 Type-A Female (Blue)

Power

1 x USB Type-C Female ( (supports USB 3.2 Gen1 Type-C Port data transfer) )

Support Power Delivery 2.0 for laptop charging up to 60W, power profiles include 5V, 12V, 15V, 20V (additional USB-C power adapter needed)

Video Output

1 x HDMI Female (Black)

Performance

Flash Memory

Supports SD V1.0/ v1.1/ v2.0/ V3.01 and V5.0

SD (Capacity up to 2GB)

SDHC (Capacity up to 32GB)

SDXC (Capacity up to 2TB)

Video Resolution

3840 x 2160@30Hz

Power Consumption

DC5V:15WBTU

System Requirements

Windows 10 or later, USB-C enabled computer with DP Alt Mode*

* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

Mac OS X 10.12 or later, USB-C enabled computer

iPadOS 13.1 or later, iPad Pro (USB-C)

Environmental

Operating Temperature

0 – 40°C

Storage Temperature

-20 – 60°C

Humidity

0 – 80% RH, Non-condensing

Physical Properties

Housing

Aluminum

Weight

0.08 kg ( 0.18 lb )

Dimensions (L x W x H)

13.30 x 3.60 x 1.10 cm

(5.24 x 1.42 x 0.43 in.)

Teknik Özellikler

• Works with all major operating systems: Windows®, macOS X and iPadOS
• Computer Connections: 1
• Cable Length: 55cm
• Computer: USB 3.2 Gen1 Type-C Male Cable
• Device: 2 x USB 3.2 Gen 1 Type-A Female (Blue)
• Power: 1 x USB Type-C Female ( (supports USB 3.2 Gen1 Type-C Port data transfer) ) Support Power Delivery 2.0 for laptop charging up to 60W, power profiles include 5V, 12V, 15V, 20V (additional USB-C power adapter needed)
• Video Output: 1 x HDMI Female (Black)
• Flash Memory: Supports SD V1.0/ v1.1/ v2.0/ V3.01 and V5.0 SD (Capacity up to 2GB) SDHC (Capacity up to 32GB) SDXC (Capacity up to 2TB)
• Video Resolution: 3840 x 2160@30Hz
• Power Consumption: DC5V:15WBTU
• System Requirements: Windows 10 or later, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 or later, USB-C enabled computer iPadOS 13.1 or later, iPad Pro (USB-C)
• Operating Temperature: 0 – 40°C
• Storage Temperature: -20 – 60°C
• Humidity: 0 – 80% RH, Non-condensing
• Housing: Aluminum
• Weight: 0.08 kg ( 0.18 lb )
• Dimensions (L x W x H): 13.30 x 3.60 x 1.10 cm (5.24 x 1.42 x 0.43 in.)
