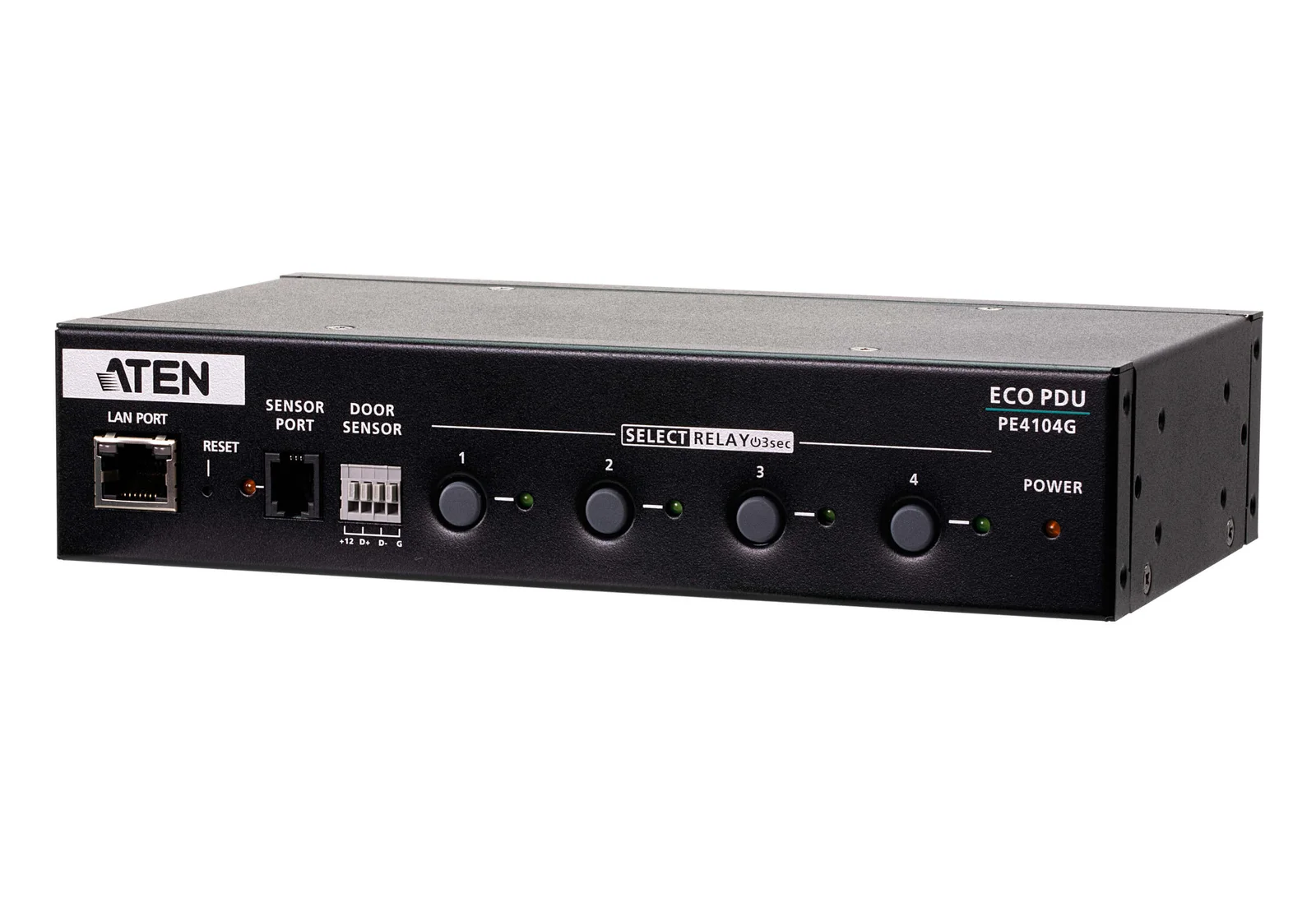

ATEN ATEN-PE4104G 4-Outlet IP Control Box

ATEN-PE4104G Uzun Tanım

Power Distribution

Space saving slim form factor

IEC power outlet

Separates power for the unit's own power and its power outlets – user interface is still accessible even when an overload condition trips the device’s circuit breaker

Remote Access

Remote power control via TCP/IP and a built in 10/100 Ethernet port

Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1&V2&V3, auto sense, Ping, Telnet, Modbus (Over TCP IP)

Works with web-based eco DC software

Operation

Local and remote power outlet control (On, Off, Power Cycle) by individual outlets

Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order

Easy setup and operation via a browser-based user interface

Security

Two-level password security

Strong security features include password protection and advanced encryption technologies – TLS1.2

Remote authentication support: RADIUS

Electrical

Nominal Input Voltage

100 – 240 VAC

Maximum Input Current

10A Max

Input Frequency

50-60 Hz

Input Connection

IEC C14

Input Power

2400VA(Max)

Outlet Type

(4) IEC 320 C13

Nominal Output Voltage

100 – 240 VAC

Maximum Output Current (Outlet)

10A(Max)

Maximum Output Current (Bank)

10A(Max)

Maximum Output Current (Total)

10A(Max)

Breakers

Yes(UL1077)

Metering

No

Outlet Switching

Yes

Power Consumption

AC110V:3.1W:20BTU

AC220V:3.5W:22BTU

Physical Properties

Dimensions(W x D x H)

44*115*200mm

Weight

0.90 kg ( 1.98 lb )

Power Cord Length

3m

Environmental

Temperature (Operating / Storage)

0 – 50? / -20 – 60?

Humidity (Operating & Storage)

0 – 80% RH, Non-Condensing

Compliance

EMC Verification

CE-EMC

Safety Verification

CE-LVD

Teknik Özellikler

• Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1&V2&V3, auto sense, Ping, Telnet, Modbus (Over TCP IP)
• Security Two-level password security Strong security features include password protection and advanced encryption technologies – TLS1.2 Remote authentication support: RADIUS
• Remote authentication support: RADIUS
• Nominal Input Voltage: 100 – 240 VAC
• Maximum Input Current: 10A Max
• Input Frequency: 50-60 Hz
• Input Connection: IEC C14
• Input Power: 2400VA(Max)
• Outlet Type: (4) IEC 320 C13
• Nominal Output Voltage: 100 – 240 VAC
• Maximum Output Current (Outlet): 10A(Max)
• Maximum Output Current (Bank): 10A(Max)
• Maximum Output Current (Total): 10A(Max)
• Breakers: Yes(UL1077)
• Metering: No
• Outlet Switching: Yes
• Power Consumption: AC110V:3.1W:20BTU AC220V:3.5W:22BTU
• Dimensions(W x D x H): 44*115*200mm
• Weight: 0.90 kg ( 1.98 lb )
• Power Cord Length: 3m
• Temperature (Operating / Storage): 0 – 50? / -20 – 60?
• Humidity (Operating & Storage): 0 – 80% RH, Non-Condensing
• EMC Verification: CE-EMC
• Safety Verification: CE-LVD
