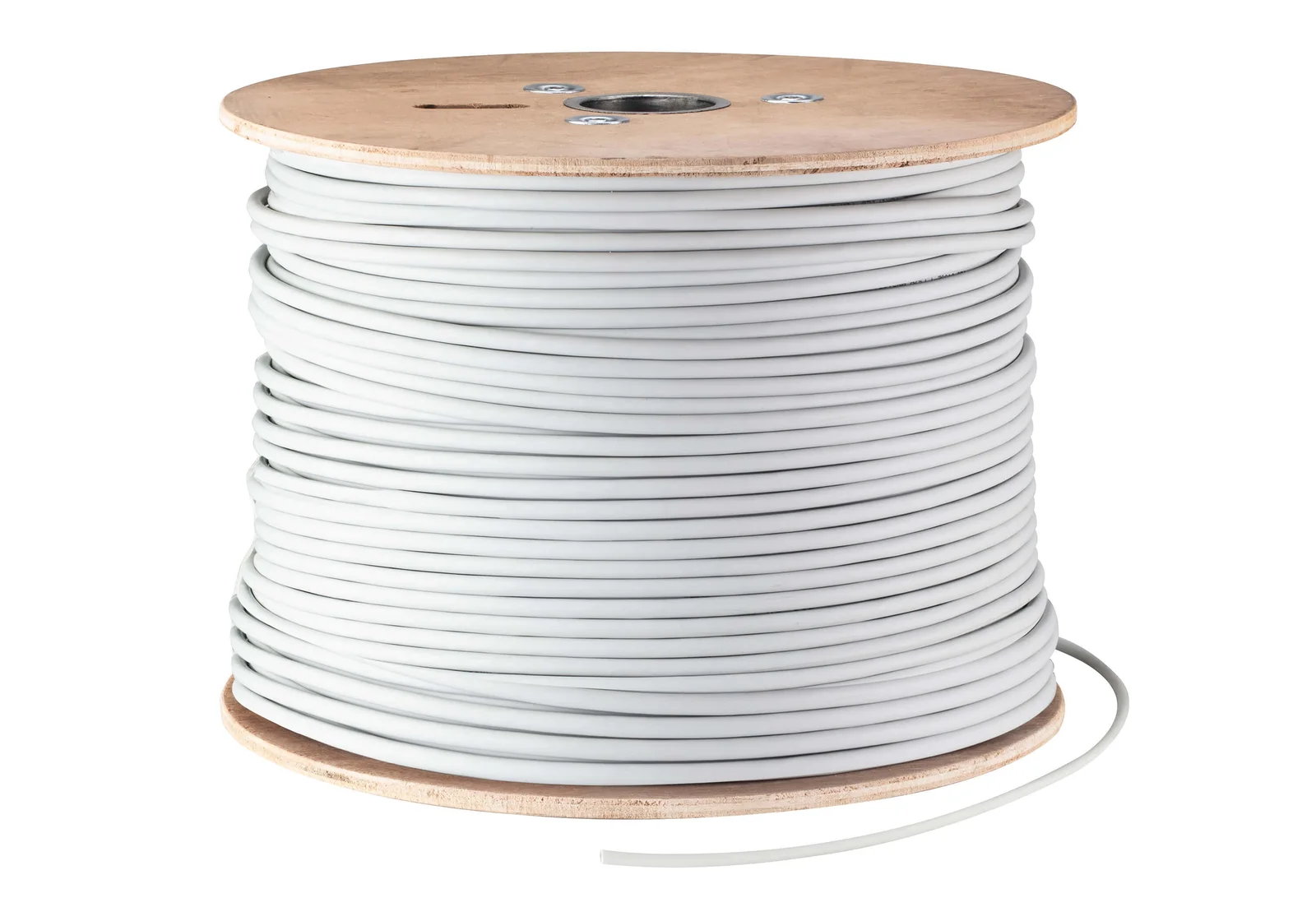

ATEN ATEN-2L-29330 300 m HDBaseT 3.0 U/FTP Cat 6A Cable

ATEN-2L-29330 Uzun Tanım

• Meets HDBaseT 3.0 standard for uncompressed multi-signal transmission up to 16 Gbit/s bandwidth, including True 4K video, audio, Ethernet, power, and control

The length of a reel of 2L-29330 is 300 m – tailored to specific lengths up to 100 m based on practical usage

Resistant to electromagnetic interference (EMI) and radio frequency
interference (RFI) brought by walkie-talkies or any other radio devices
to prevent AV signal disturbance

Conductor material: 23 AWG solid bare copper

Tested transmission up to 500 MHz, according to ISO 11801 class EA, ANSI/TIA-568.2-D, and IEC 60332-1 standards

Outer shielded material: AI Mylar tape and braid

Low Smoke Zero Halogen (LSZH) copper cable – eco-friendly material design for better safety

Compatible with ATEN’s HDBaseT extenders, splitters, and matrix switches

Cable Type

Cat 6A U/FTP

Cable Length

300m / 990ft

Conductor

Size

23AWG

Construction

Individual shielded pair

Material

Solid plain annealed bare copper wire

Number of Pairs

4 twisted pairs, 2 single conductors paired

Insulation

Material

Foamed PE , 1.46 +/- 0.1mm

Color codes

Twisted pair color code:

Light Blue / Blue

Light Orange / Orange

Light Green / Green

Light Brown / Brown

Binder

Material

Polyester

Shield

Material

A layer of aluminum-foil laminated tape

Drain Wire

Construction

26AWG

Jacketed

Material

LSZH (Low Smoke Zero Halogen)

Diameter

7.2+/-0.5 mm

Color

Gray

Electrical

DC Resistance

9.38 ? (max.) / 100m at 20 °C

Propagation Delay

535.6ns (max.) / 100m at 500Mhz

Propagation Delay Skew

45ns Max./100m

Insertion Loss

45.3 dB (max.) / 100m at 500Mhz

Impedance

100+/-15 ?

Environmental

Temperature (Operating / Storage)

-20°C to 60°C

Physical Properties

Weight

17.00 kg ( 37.44 lb )

Standard Support

ANSI/TIA-568.2-D

HDBaseT 3.0 Premium cable

Teknik Özellikler

• Conductor material: 23 AWG solid bare copper
• Outer shielded material: AI Mylar tape and braid
• Cable Type: Cat 6A U/FTP
• Cable Length: 300m / 990ft
• Size: 23AWG
• Construction: Individual shielded pair, 26AWG
• Material: Solid plain annealed bare copper wire, Foamed PE , 1.46 +/- 0.1mm, Polyester, A layer of aluminum-foil laminated tape, LSZH (Low Smoke Zero Halogen)
• Number of Pairs: 4 twisted pairs, 2 single conductors paired
• Color codes: Twisted pair color code: Light Blue / Blue Light Orange / Orange Light Green / Green Light Brown / Brown
• Diameter: 7.2+/-0.5 mm
• Color: Gray
• DC Resistance: 9.38 ? (max.) / 100m at 20 °C
• Propagation Delay: 535.6ns (max.) / 100m at 500Mhz
• Propagation Delay Skew: 45ns Max./100m
• Insertion Loss: 45.3 dB (max.) / 100m at 500Mhz
• Impedance: 100+/-15 ?
• Temperature (Operating / Storage): -20°C to 60°C
• Weight: 17.00 kg ( 37.44 lb )
• Standard Support: ANSI/TIA-568.2-D HDBaseT 3.0 Premium cable
