ATEN ATEN-2L-2801 KVM Mesafe Uzatma Cihazları için Low Skew Category 5E (Cat. 5E) Kablosu

ATEN-2L-2801 Uzun Tanım

Yüksek kalite RGB görüntü iletimi

350 MHz bantgenişliği

305 metrelik rulo

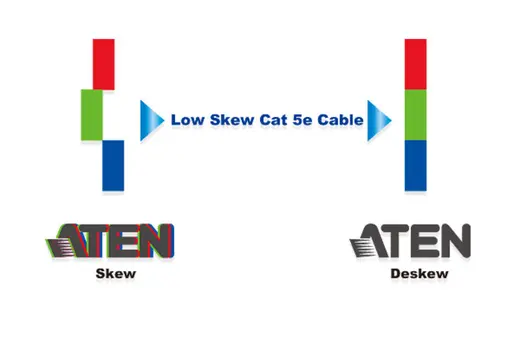

Gecikme: 1 ~ 350 MHz 20nS/100 metre maksimum

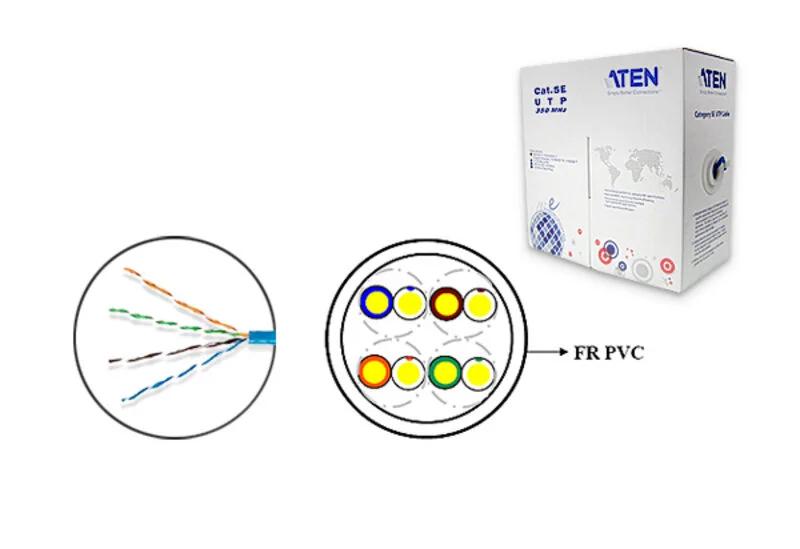

Dış Kılıf Hammaddesi: FR PVC

Zırhsız

İletken Hammaddesi: 24 AWG

ATEN analog Cat 5 görüntü uzatma cihazları, KVM sinyal uzatma cihazları ve Cat 5 KVM switch'lerle birliklte kullanılır.

UL, ETL onaylı

Construction

Connectors

Size

24 AWG

Construction

Solid bare copper

Cond. Diam.

1/0.492±0.02 mm

Insulation

Avg. Thick.

0.195 mm

Min. Thick.

0.185 mm

Diameter

0.880 ± 0.02 mm

Material

HDPE

Color codes

1.Blue × White/Blue stripe

2.Orange × White/Orange stripe

3.Green × White/Green stripe

4.Brown × White/Brown stripe

Shielded

Pair stranded

2 cores stranded

Assembly stranded

4 pair stranded

Jacketed

Avg. Thick.

0.45 mm

Min. Thick.

0.41 mm

Diameter

4.80 ± 0.20 mm

Material

FR PVC

Color

Blue or other color

Electrical & Physical Properties

Item

24AWG × 4p

Cable Length

305 m/ 1000 ft

Conductor Resistance

9.38 Ohm/100m/20°C Max.

Mutual Capacitance

56 Pf/M Max.

Dielectric Strength

Ac 1.5 Kv/2 Sec.

Spark Test

2.5 Kv

Insulation

Unaged

Tensile Strength

2400 Psi Min. (1.69 Kg/M(mxm))

Elongation

300% Min.

Aged

Tensile Strength

Unaged Min. 75%(100°C×48hrs)

Elongation

Unaged Min. 75%(100°C×48hrs)

Jacketed

Unaged

Tensile Strength

2000 Psi Min.(1.41 Kg/M(mxm))

Elongation

100% Min.

Aged

Tensile Strength

Unaged Min. 85%(100°C×240hrs)

Elongation

Unaged Min. 50%(100°C×240hrs)

Insulation Shrinkback

150m/M, 121°C±1°C×1hr?9.5m/M

Cold Bend Test

-20°C×4hrs No.Crack

Flame Retardant Test

CMR

Ac Leakage Current Througt Overall Jacket

Ac 1500v?10 Ma

Dc Resistance Unbalance

5% Max.

Pair-To-Ground Capacitance Unbalance

330 Pf/100m Max.

Characteristic Impedance

1 - 350 Mhz 100±15 Ohms

Structural Return Loss

350 Mhz 10.6db Min.

Propagation Delay

350 Mhz 536ns/100m Max.

Delay Skew

1 - 350 Mhz 20ns/100m Max.

Weight

9.8 KG

Teknik Özellikler

• Gecikme: 1 ~ 350 MHz 20nS/100 metre maksimum
• Dış Kılıf Hammaddesi: FR PVC
• İletken Hammaddesi: 24 AWG
• Construction: Solid bare copper
• Cond. Diam.: 1/0.492±0.02 mm
• Min. Thick.: 0.185 mm, 0.41 mm
• Diameter: 0.880 ± 0.02 mm, 4.80 ± 0.20 mm
• Material: HDPE, FR PVC
• Color codes: 1.Blue × White/Blue stripe 2.Orange × White/Orange stripe 3.Green × White/Green stripe 4.Brown × White/Brown stripe
• Assembly stranded: 4 pair stranded
• Color: Blue or other color
• Item: 24AWG × 4p
• Cable Length: 305 m/ 1000 ft
• Conductor Resistance: 9.38 Ohm/100m/20°C Max.
• Mutual Capacitance: 56 Pf/M Max.
• Dielectric Strength: Ac 1.5 Kv/2 Sec.
• Spark Test: 2.5 Kv
• Elongation: 300% Min., Unaged Min. 75%(100°C×48hrs), 100% Min., Unaged Min. 50%(100°C×240hrs)
• Insulation Shrinkback: 150m/M, 121°C±1°C×1hr?9.5m/M
• Cold Bend Test: -20°C×4hrs No.Crack
• Flame Retardant Test: CMR
• Ac Leakage Current Througt Overall Jacket: Ac 1500v?10 Ma
• Dc Resistance Unbalance: 5% Max.
• Pair-To-Ground Capacitance Unbalance: 330 Pf/100m Max.
• Characteristic Impedance: 1 - 350 Mhz 100±15 Ohms
• Structural Return Loss: 350 Mhz 10.6db Min.
• Propagation Delay: 350 Mhz 536ns/100m Max.
• Delay Skew: 1 - 350 Mhz 20ns/100m Max.
• Weight: 9.8 KG
