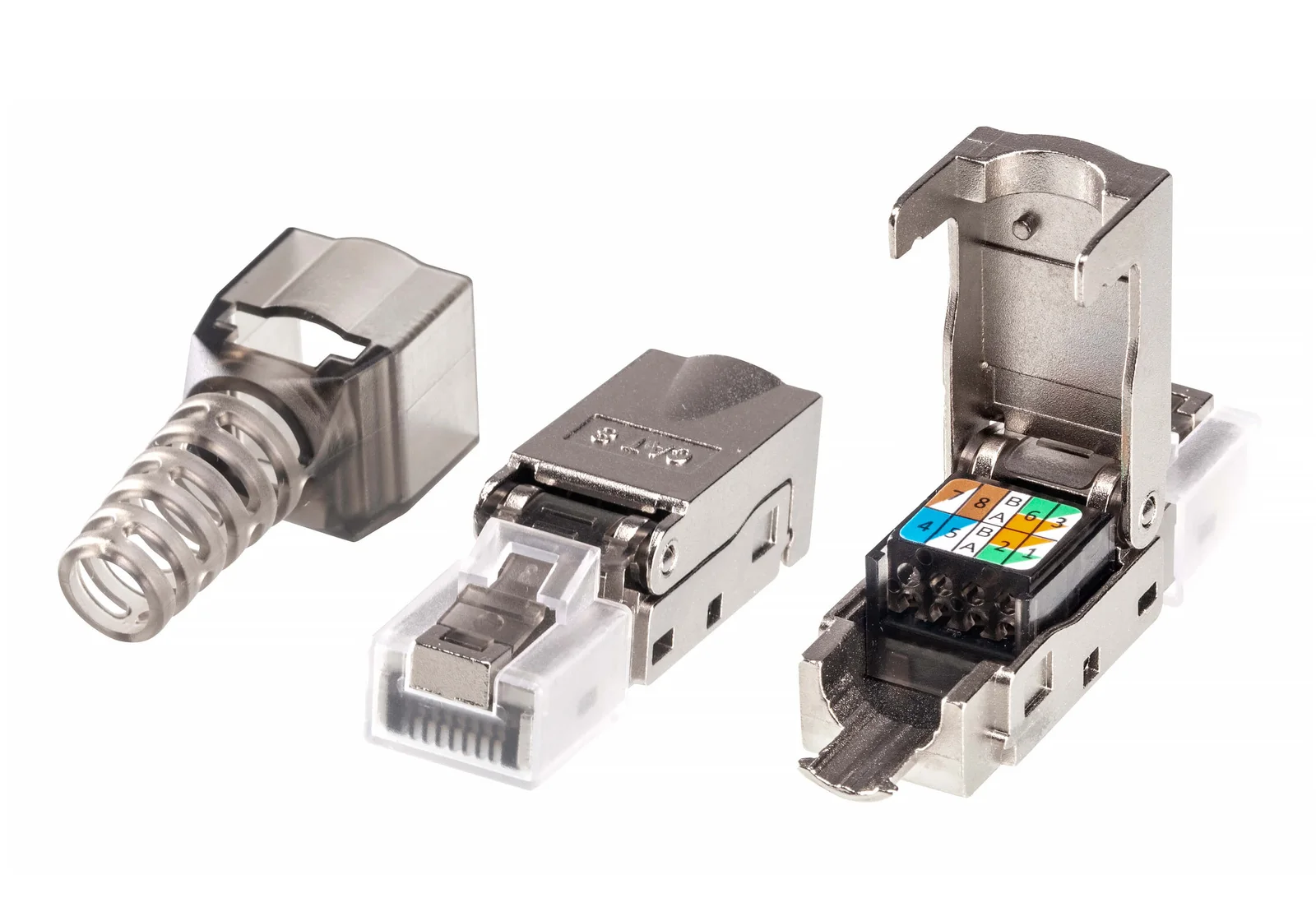

ATEN ATEN-2A-245G Cat 6A RJ-45 Connector

ATEN-2A-245G Uzun Tanım

• Meets HDBaseT 3.0 standard for uncompressed multi-signal transmission up to 16 Gbit/s bandwidth, including True 4K video, audio, Ethernet, power, and control

The length of a reel of 2L-29330 is 300 m – tailored to specific lengths up to 100 m based on practical usage

Resistant to electromagnetic interference (EMI) and radio frequency
interference (RFI) brought by walkie-talkies or any other radio devices
to prevent AV signal disturbance

Conductor material: 23 AWG solid bare copper

Tested transmission up to 500 MHz, according to ISO 11801 class EA, ANSI/TIA-568.2-D, and IEC 60332-1 standards

Outer shielded material: AI Mylar tape and braid

Low Smoke Zero Halogen (LSZH) copper cable – eco-friendly material design for better safety

Compatible with ATEN’s HDBaseT extenders, splitters, and matrix switches

Cable Type

RJ45 complies with FCC part 68 standard, provides termination for 22 ~ 26 AWG wire

Electrical

DC Resistance

Max. 0.1?

Insulation resistance

500 M?

Contact resistance

20 m?

DC Current rating

1.5Amps

Dielectric strength

Dielectric withstanding voltage 1000V

Environmental

Operating Temperature

-40°C- +60°C

Physical Properties

Material

Housing: ABS + PC, UL94V-0

Contact: 0.35mm Thickness Phosphor Bronze Gold Plated over Nickel

Type

Gun shield: Zinc Alloy, nickel plated

Weight

0.01 kg ( 0.04 lb )

Dimensions (L x W x H)

4.56 x 1.38 x 1.25 cm

(1.8 x 0.54 x 0.49 in.)

Teknik Özellikler

• Conductor material: 23 AWG solid bare copper
• Outer shielded material: AI Mylar tape and braid
• Cable Type: RJ45 complies with FCC part 68 standard, provides termination for 22 ~ 26 AWG wire
• DC Resistance: Max. 0.1?
• Insulation resistance: 500 M?
• Contact resistance: 20 m?
• DC Current rating: 1.5Amps
• Dielectric strength: Dielectric withstanding voltage 1000V
• Operating Temperature: -40°C- +60°C
• Material: Housing: ABS + PC, UL94V-0 Contact: 0.35mm Thickness Phosphor Bronze Gold Plated over Nickel
• Type: Gun shield: Zinc Alloy, nickel plated
• Weight: 0.01 kg ( 0.04 lb )
• Dimensions (L x W x H): 4.56 x 1.38 x 1.25 cm (1.8 x 0.54 x 0.49 in.)
